ChargePoint EXPRESS Plus Fast Charging Stations

ChargePoint Express Plus charging stations are delivered with the following features:

• Cord / connector available include CCS1 and/or CHAdeMO cord, 14’ horizontal reach. CCS1 cord and connector available up to 350 kW rating.  CHAdeMo cord and connector rated up to 200 Amp rating.
• Can be ordered with a single simultaneous connector (CCS1 or CHAdeMO) or dual simultaneous combination (2 CCS1 or 1 CCS1 and one CHAdeMO). Each cord includes cord management.
• Cords can be ordered with a single or a combination, as well as various lengths and amperage depending on application.
• Input: 480 VAC, up to 400 Amp, 3-Phase, 4 conductors UL, cUL (Canada) and CE certifications
• Operating Temperature: -40°C to 50°C (-40°F to 122°F)
• Dynamic power management.  Allows a fixed maximum power output per station or lets the system dynamically manage the power distribution per station.
• Remote Energy Management - manage output power via the ChargePoint Admin Portal, API, and Video w/ touchscreen.
• Access controls through RFID reader, cell phone app
• Cellular connectivity / North America Modem/SIM card. OCPP 2.0 supported.
• Remote system monitoring.
• Alignment mounting plate included

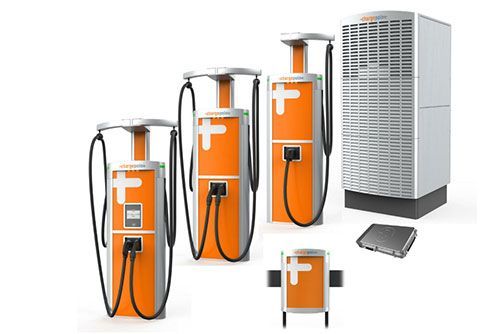

*Express Plus Solutions:

• Each Express Plus solutions are configured as follows:

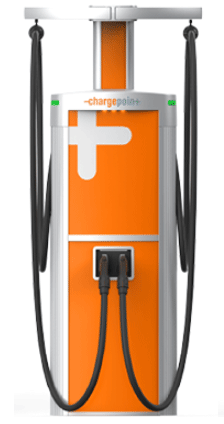

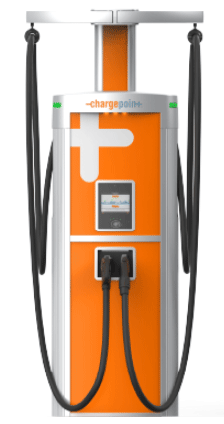

• Power Link charging station
• One (1) or two (2) Power Blocks per Power Link.

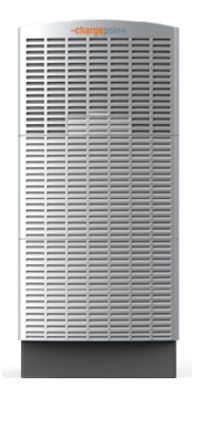

• The Power Block converts the power source from AC to DC.
• One (1) to five (5) 40 kW Power Modules that mount in each Power Block.
• Each station’s output is configured to suit your needs, based on the number of Power Block(s), each containing up to five (5) power modules (40 kW, 100 A each)
• The PL1000 series provides one simultaneous connection and provides up to 200 kW per connector
• The PL2000 series provides two simultaneous connection and provides up to 350 kW per connector
• For higher power applications, cables and power modules include liquid cooling.
• One Power Block can serve up to 2 Power Link stations. Additional Power Blocks can be added to serve more than one station or increase power output up to 350 kW.

Support services available for ChargePoint Express Plus charging stations:

• Commissioning Service: required per Power Block and per Power Link, includes on-site validation and inspection of electrical, mechanical, installation, wiring and civil parameters for the Express Plus Power Block and Power Link.
• ChargePoint’s standard one year Warranty covering material and workmanship. Additional annual ChargePoint’s Assure Warranty Plans, including labor and material costs, are available for 1 through 5 years.
• ChargePoint Enterprise Cloud Plan is required and provided for an annual fee and may be purchased for 1-to-5-year duration. This includes flex billing, waitlisting, driver access controls, customizable videos, reservations, 24/7 driver support, 24/7 station monitoring, station manager support, automatic software updates, data and analytics, fleet vehicle management, Valet dashboards, power management, and more.
• ChargePoint’s Site Activation process is required for all installation, including station pinpointing (geo-spatial locating), station activation and initial configuration.
•
