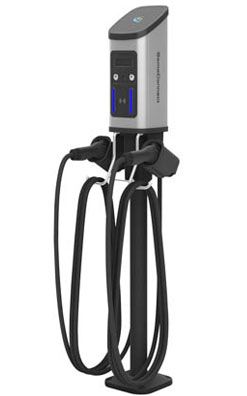

Blink Series 7 Charging Stations

USE: Series 7 Level 2 EV charging stations provide 48 Amps (10 kW at 208 and 11.5 kW at 240 VAC).

Designed for a multiple user at a sharable parking space, like public and private parking, retail,

workplace, hospitality, and institutions.

OPTIONS: Series 7 chargers are available in dual port models , wall or

pedestal mount, with 18’ or 25’ long cord.

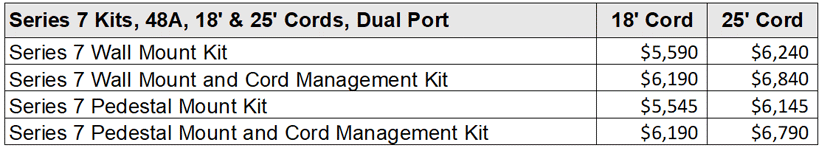

The table below provides pricing for various combinations.

Blink Series 7 charging stations also include the following:

Fleet management portal  | Fleet vehicle management | Built in energy meter

Fleet access control | Late plug in plug out alerts | Schedule charging start time

Session data analysis   Load management ready  | Pay with Plugshare

Smart Card authentication open or closed access for EV Drivers

Blink Series 7 charging stations are delivered with the following features:

  • Built-in ground fault relay, surge protection, automatic plug out detection
  • Cellular 4G LTE, OCPP Compliant, OTA firmware management.
  • Operating temperature -30C to +50 C
  • Flexible user access control and facility owner pricing
  • Automatic software upgrades
  • RFID Reader
  • Single phase 208/240 VAC Input (kW rating shown are for 240 VAC)
  • UL certifications


Support services available for Blink Series 7 charging stations:

  • Blink’s SC-NET Network Services Plan is included for 1 year of cellular services, including product support and user dashboard. Annual cost for subsequent years is $ 240 per plug. Pre-paid Network Service

o   A 1-year plan included in base price and optional 3- or 5-year pre-paid network plans

o   Cloud Based Station Management Software

o   Price configuration interface, access policy configuration

o   Usage and sustainability reports,

o   Wireless “All Gateway” data Communications,

o   24/7/365 Driver Support and station health monitoring.

  • Blink’s standard 1-year Warranty covering material and workmanship.

o   Pre-Paid/ Best in Class warranty with no repair cycle or contractor visit required.

o   Replacement unit delivered to your property, swapped for original unit and becomes operational unit.
